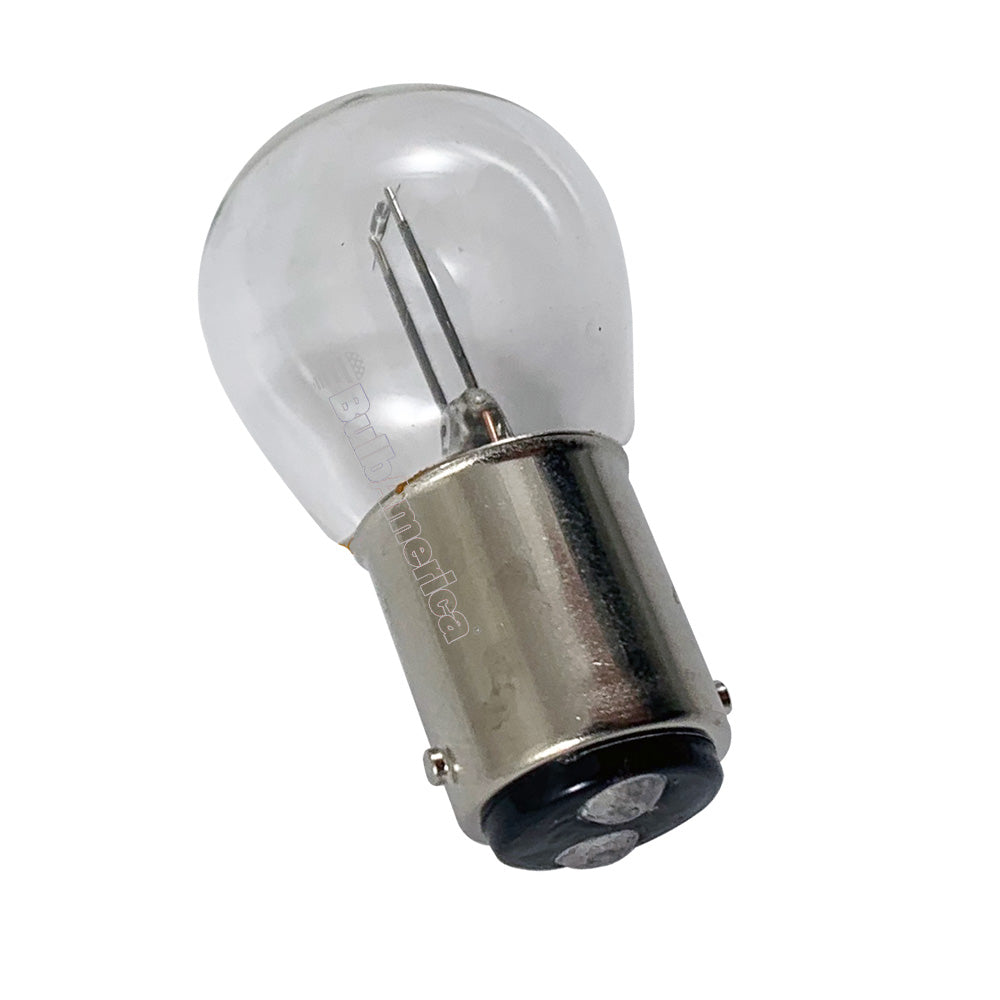

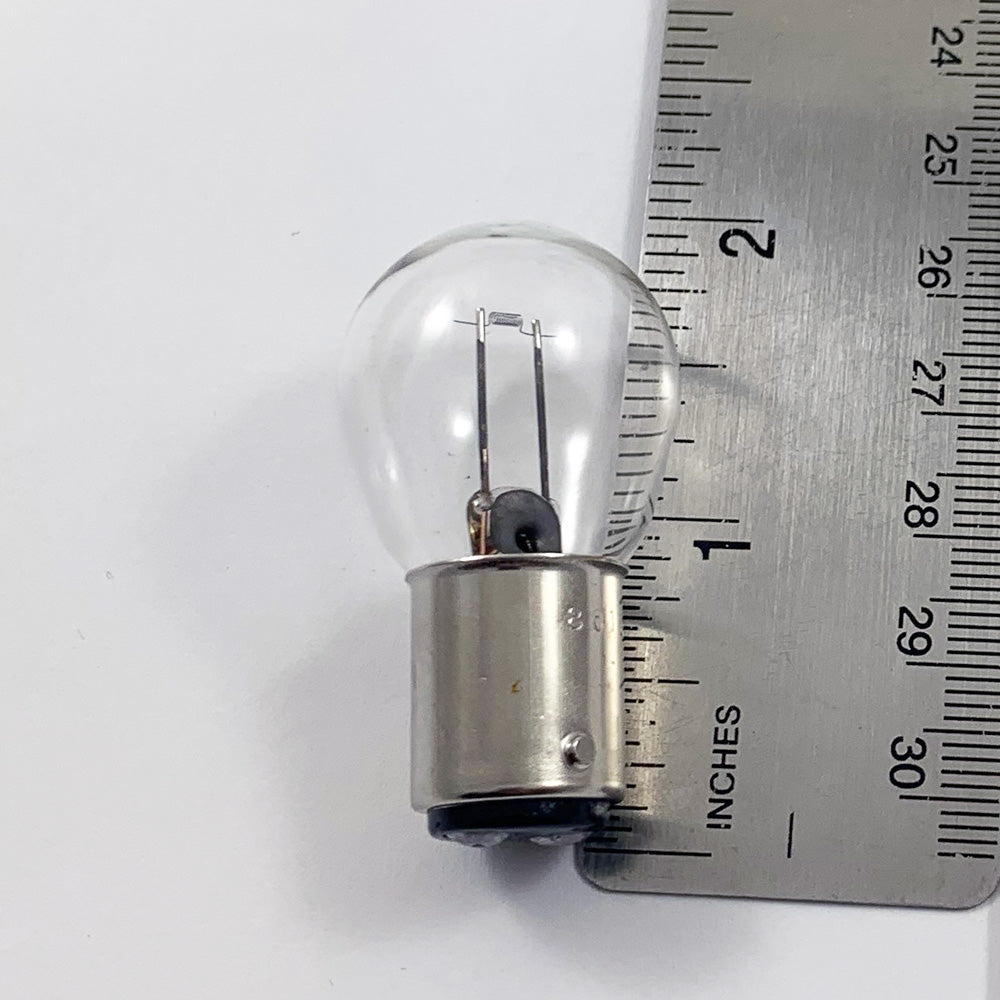

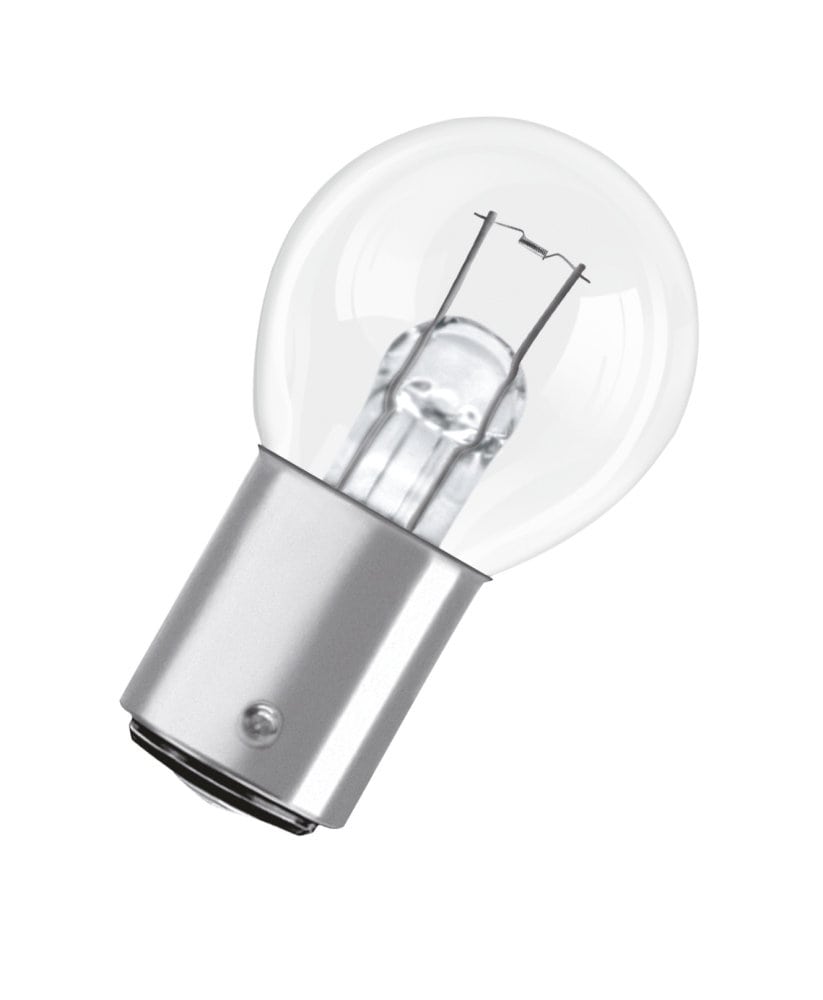

OSRAM 8013 10W 6V P25 BA15d Base Film Projector Bulb

Osram 8013 10 watt P25 Incandescent Lamp

Features:
- ANSI Code: SM-8013, BC8972
- Wattage: 10W
- Voltage: 6V
- Base: BA15d Double Contact
- Average Rated Life: 200 hours
- Diameter: 0.97in (25mm)
- maximum Overall Length: 1.81 in (46mm)

Cross Reference:
- Ushio 8000266 SM-8013/6V-10W

Applications:
- film projector lamps

Manufacturer	OSRAM
Part Number	76311
UPC	046135763113
EAN	4050300206356
Manufacturer	OSRAM
Part Number	23397
UPC	046135233975
EAN	4008321378316
Manufacturer	OSRAM
Part Number	23397
UPC	046135233975
EAN	4008321378316
Abbrev. With Packaging Info.	8013
Application	Projector
Average Rated Life (hr)	200
Base	BA15d Double Contact Bayonet
Bulb	P25
Class	C (gas)
Color Rendering Index (CRI)	100
Diameter d (in)	0.984
Diameter d (mm)	25
Distance a (in)	1.17
Distance a (mm)	30
Filament Dimensions Length (in)	0.035
Filament Dimensions Length (mm)	0.9
Filament Dimensions Width (in)	0.066
Filament Dimensions Width (mm)	1.7
Lamp Finish	Clear
Length l (in)	1.794
Length l (mm)	46
Length l max. (in)	1.794
Length l max. (mm)	46
Maximum Overall Length - MOL (in)	1.794
Maximum Overall Length - MOL (mm)	46
Nominal Voltage (V)	6
Nominal Wattage (W)	10
Operating Position	h 105
Type of Current	AC
