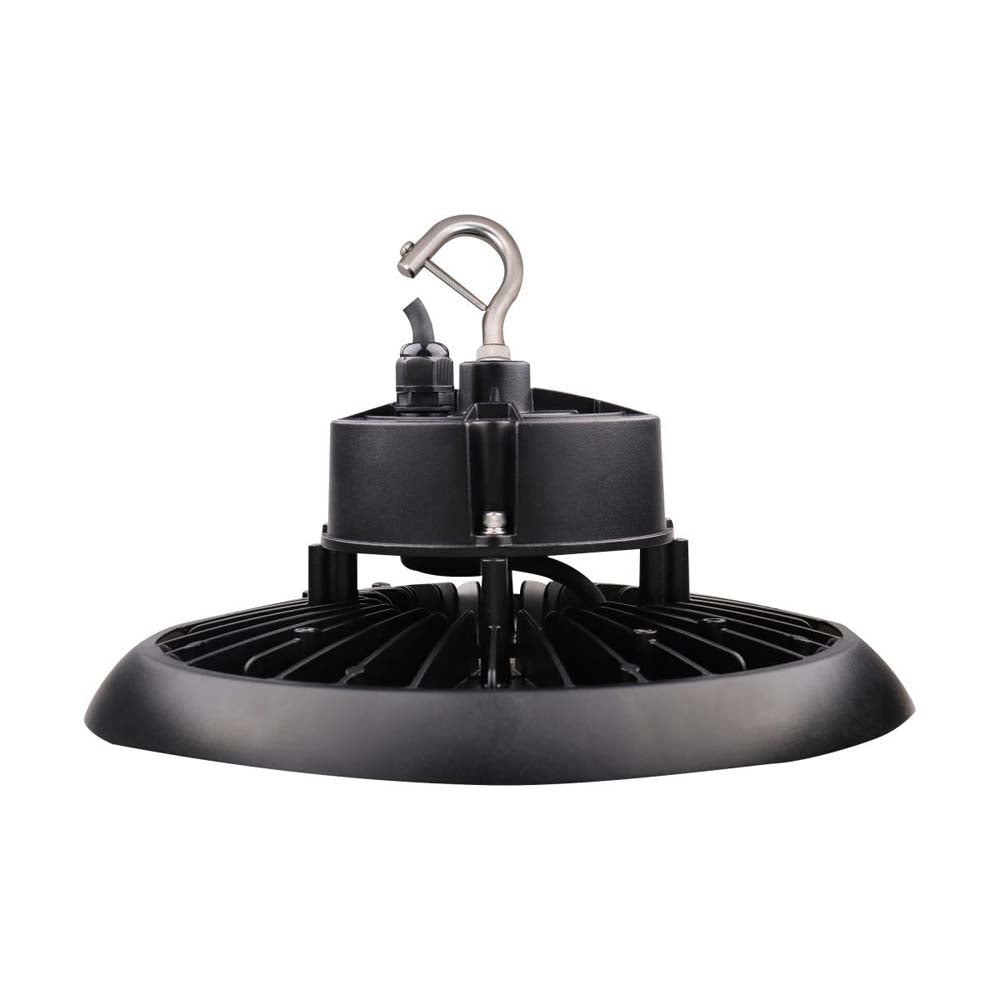

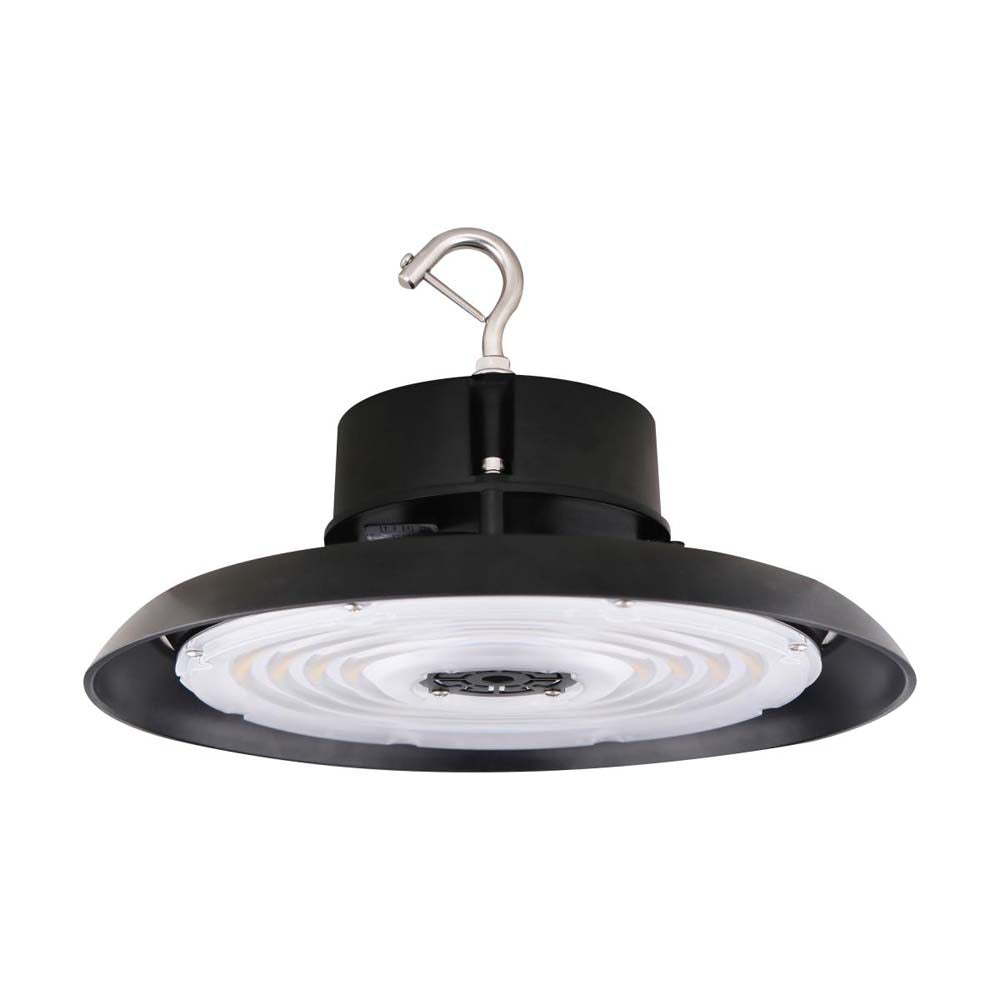

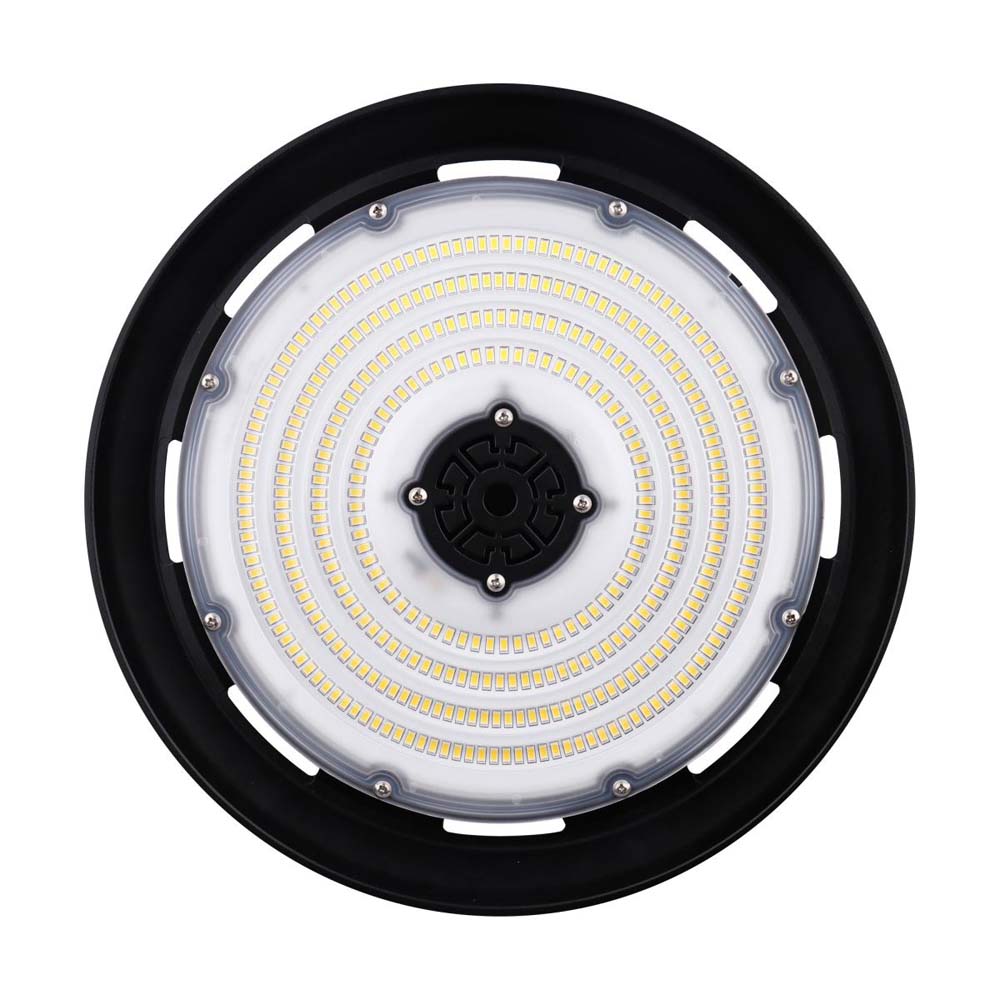

200W UFO LED High Bay 28200 Lumens 4000K 277-480v 0-10V Dimmable Black Finish

Introducing our newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrated sensor port for easy field installation of an add on microwave sensor. They have a 90 degree beam angle, a locking hook, are IP65, 0-10V dimmable and feature 4KV surge Protection They are rated for 50,000 hours and carry a 5-year warranty. Offered with these is a full suite of accessories including yoke mounts, pendant adapters, protective cages, anti-glare shields, a sensor and remote and an add on EM.

Features:
- Integrated Sensor Port
- IP65
- 4KV Surge Protection
- 6 Foot Whip
- 90 degree Beam Angle
- 50,000 hours
- 5 Year Warranty

General
Finish	Black
Style	Utility
Height (in.)	8.43
Width (in.)	14.17
Specifications
Base	Integrated
Bulb Type	LED
Max Wattage	200W
Voltage	277V-480V
Bulb Included	Integrated
Weight (lb.)	10.11
Sloped Ceiling	No
Fixture Type	UFO Hi-Bay
Fixture Material	Die Cast Aluminum
Dimensions
Height (in.)	8.43
Width (in.)	14.17
Length (in.)	16.54
Compliance
Safety Listing	cULus - Listed
Location Rating	Wet
Energy Star	No
CA T20 / T24 Rationale	T20 Exempt - Fixtures Not Regulated
California Status	Lawful for sale in California
California Prop 65	Lead
RoHS Compliant	Yes
FCC Compliant	Yes
Additional Information
Warranty	5 Year Limited

Manual:

65-805 Data Sheet
65-805 Installation Manual
